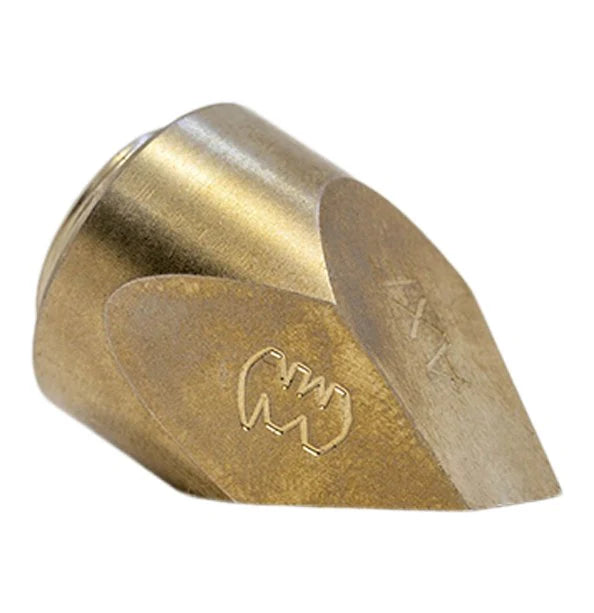

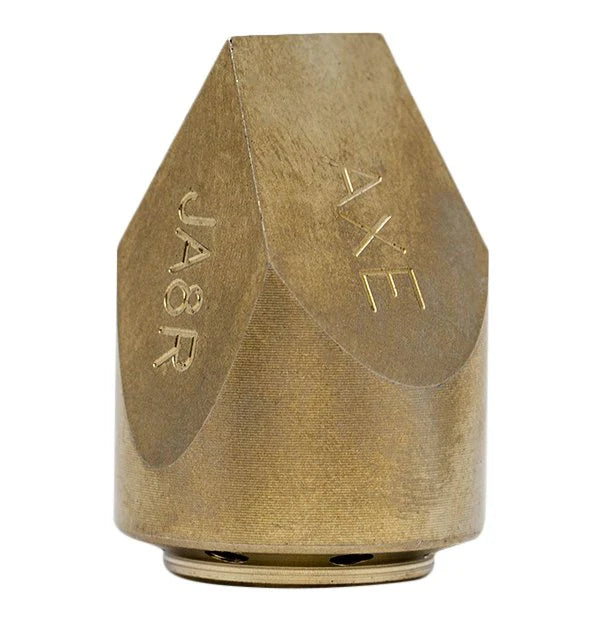

Jetaxe Invader Nozzle 1/4" JA8R
Jetaxe Invader Nozzle 1/4" JA8R
Couldn't load pickup availability
The Jetaxe Nozzles 1/4" Series are based on the popular Grease Ball series. They are available in Invading and Thrusting jet configurations. These innovative and registered design includes the axe head which chops and tears into roots and hard blockages
Application
The Jetaxe Nozzles are part of the Jetaxe Series, Mustang's highest-selling series. Designed for thrust Invasion and cutting ability, they will power up the line and gnaw at a blockage with its innovative axe head. The rear jets configuration delivers massive thrust for the axe head to work at the blockage while the rear jets drive forward and clean out the pipe.
Specifications
|
Nozzle Styles |
Invader |
Thruster |
|
|
Front Jet |
1 - 0° |
0 - 0° |
|
|
Rear Jets |
6 - 30° |
8 - 30° |
|
|
Part # |
JA6R1F |
JA8R |
|
| Connection |
1/4"" BSP F |
1/4" BSP F |
|
|
Pipe Size |
80mm - 150mm |
Flow Index |
055 |
|
Connection |
BSP ¼” F |
||
|
Weight |
43g |
||
|
Dimensions |
L-32mm W-25mm H-25mm |
||
To view the 2023/24 Mustang Nozzle Catalogue, click this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories
