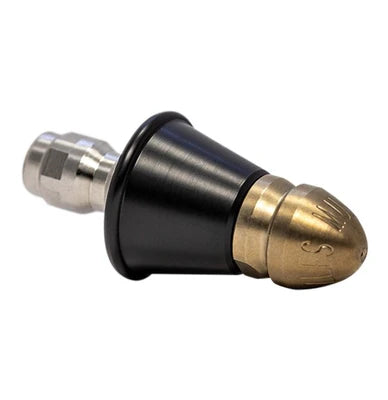

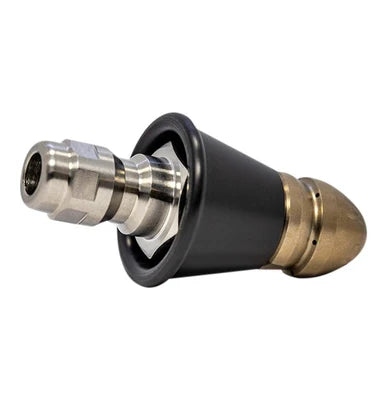

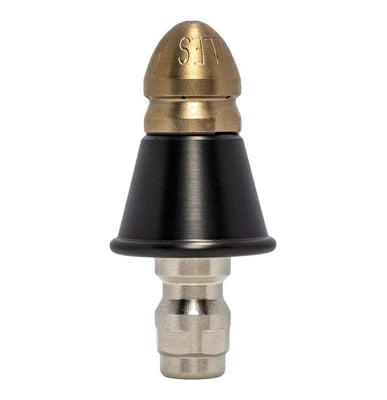

Compressor Nozzle 1/8" with QR-A Slim PVC Skirt C6RC

Compressor Nozzle 1/8" with QR-A Slim PVC Skirt C6RC

Regular price $167.20 AUD
Regular price Sale price $167.20 AUD
Sale Sold out
Jet Configuration
Quantity

The Compressor Nozzle 1/8" with QR-A Slim PVC Skirt  is available in Penetrating, Invading and Thrusting jet configurations. It has a small body with a round nose so it can penetrate deep into tight blockages while the connector skirt protects your QR fixture.

Application
It is used where a small nozzle is required to break up blockage material in small diameter drains including tree roots, sand, soil, grease, ice and debris. It is used on 1/8" Whip Hoses, Bullet Nozzles and all other 1/8" hose fittings.


Specifications

Nozzle Styles

Thruster

Penetrator

Invader

Front Jets

0 -  0°

1 -  0°

1 -  0°

Rear Jets

6 - 20°

3 -  30°

6 - 30°

Part #

C6RC

C3R1FC

C6R1FC

Pipe Size

Up to 100mm

Flow Index

055

Connection

QR-A Slim PVC Skirt

Weight

50g

Dimensions

L-53mm   W-25mm   H-25mm


To view the 2023/24 Mustang Nozzle Catalogueclick this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories. Request your free copy
