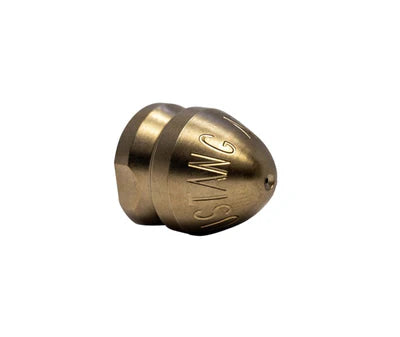

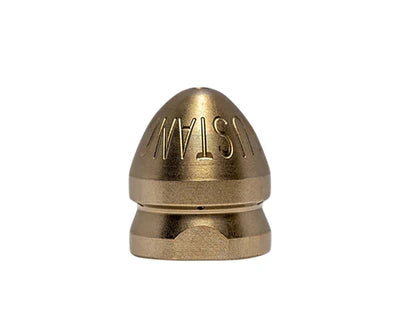

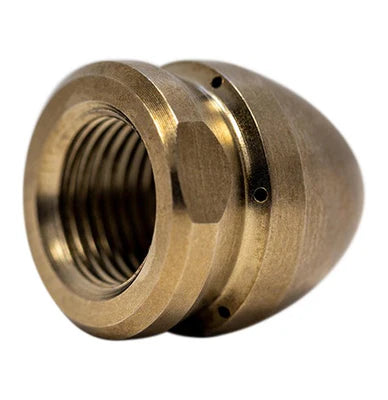

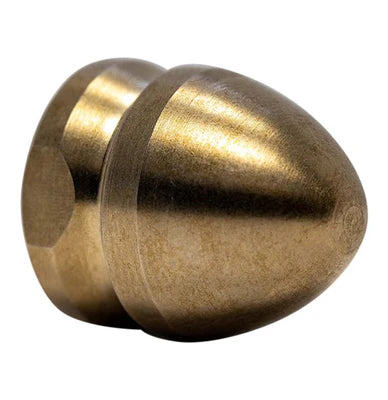

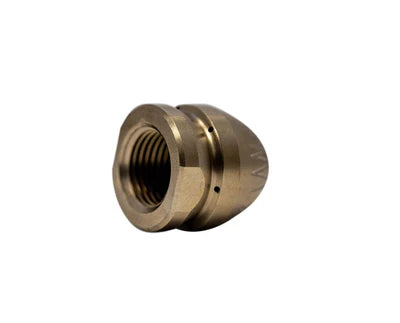

Compressor Nozzles 1/8" Series with BSP 1/8" F are available with the choice of either Thrusting, Penetrating and Invading jet configuration. The small body with a round nose allows this nozzle to bury deep into tight blockages. Some NPT options are available.
Application It is used where a small nozzle is required to break up blockage material in small diameter drains and clears tree roots, sand, soil, grease, ice and debris. It is used on 1/8" Whip Hoses, Bullet Nozzles and all other 1/8" hose fittings.
Specifications
Nozzle Styles
Thruster
Penetrator
Invader
Front Jets
0 - 0°
1 - 0°
1 - 0°
Rear Jets
6 - 20°
3 - 30°
6 - 30°
Part #
C6R
C3R1F
C3R1F-N
C6R1F
C6R1F-N
Connection
BSP 1/8" F
BSP 1/8" F
NPT 1/8" F
BSP 1/8" F
NPT 1/8" F
Pipe Size
Up to 100mm
Flow Index
055
Weight
10g
Dimensions
L-17mm W-14mm H-14mm
To view the 2023/24 Mustang Nozzle Catalogue, click this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories. Request your free copy
