5/16'' Armadillo Redflex Jetting Hose RF 9-60M
5/16'' Armadillo Redflex Jetting Hose RF 9-60M
Couldn't load pickup availability

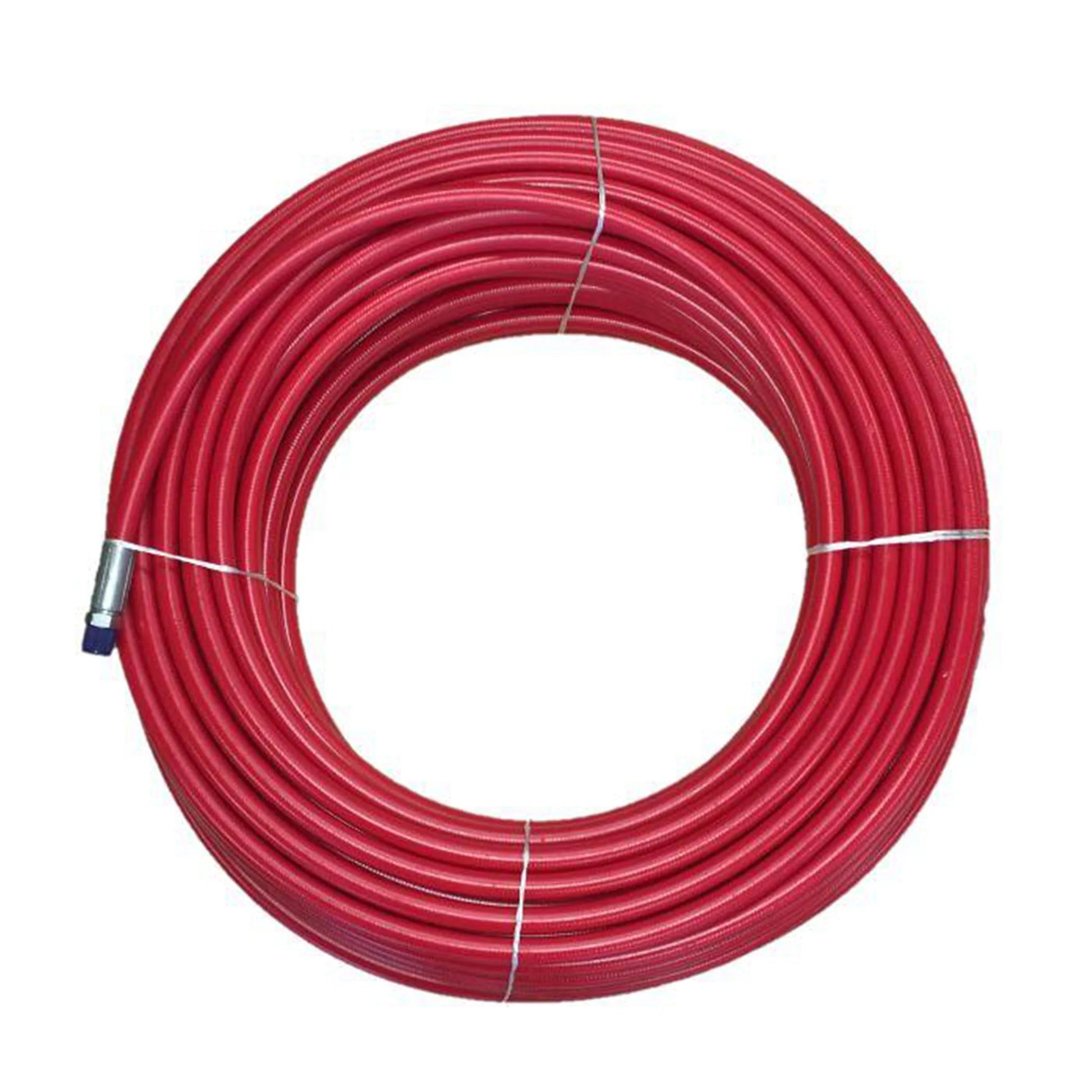

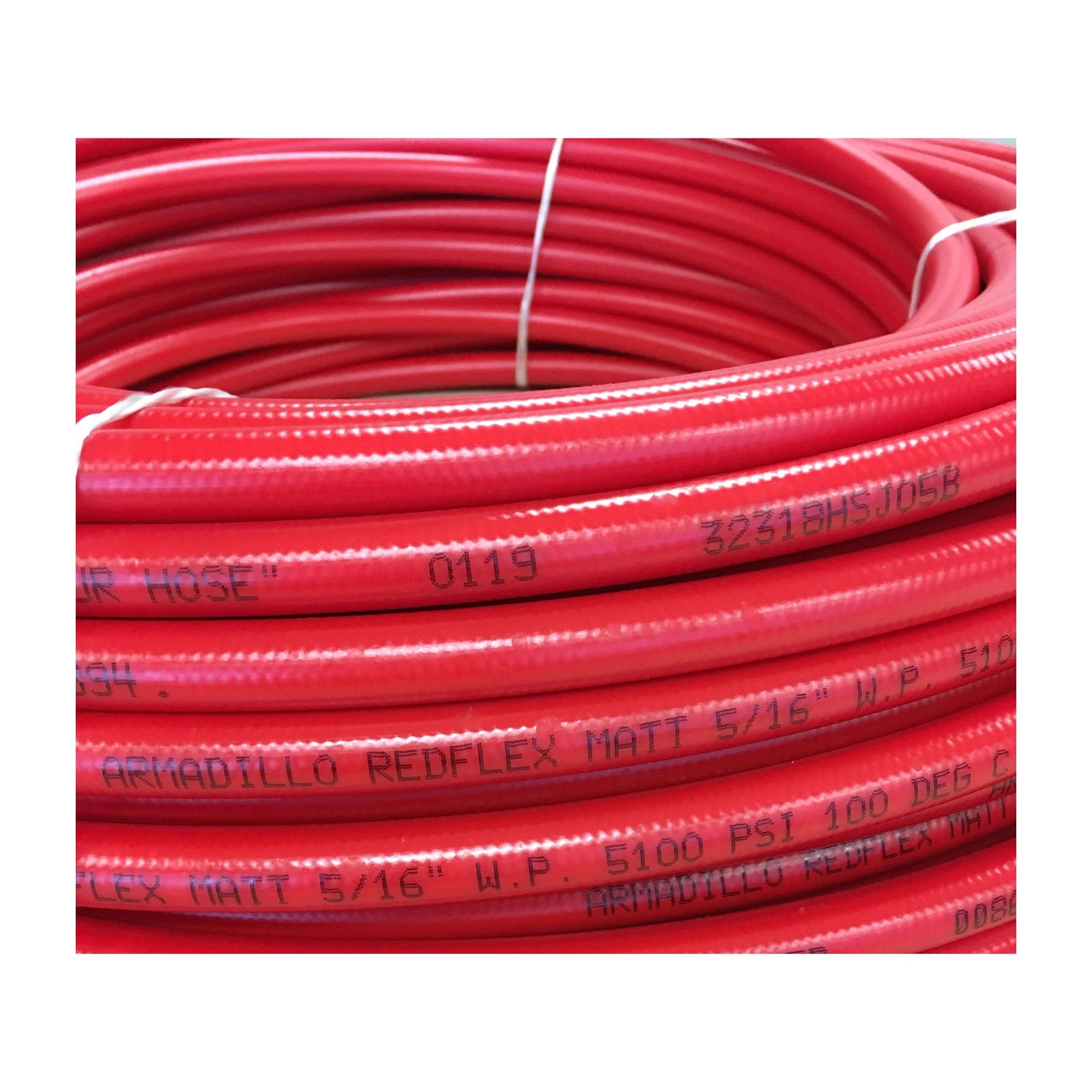

The 5/16" Armadillo RedFlex Jetting Hose is the latest addition to our hose range. This hose covers the most common flow range of 15-30 LPM without compromising the overall manoeuvrability. Used on the main reel of 20-25LPM jetters and on the Remote Mini Reel™ with jetters with a 3/8” main hose to give you that extra kick while working with larger flow nozzles like the Mustang Root Ranger®.
Application
The advantage of the 5/16" hose is that it can deliver a high flow of water through the hose and give you more power at the nozzle. It is lightweight and can be used for everyday drain cleaning. The hose is strong and flexible.
Specifications
|
Type |
RedFlex |
Flow Range |
17 l/min to 25 l/min |
|
Size |
5/16” |
Pipe Size |
mm – mm |
|
Hose ID |
8.0mm |
Material |
PU Thermoplastic |
|
Hose OD |
14.1mm |
Temperature |
-40°C to +100°C |
|
Bend Radius |
60mm |
Weight |
130g/m |
|
Working Pressure |
5100 PSI |
Hose Layers |
4 |
|
Connection Front* |
¼” BSP M |
Connection Back* |
¼” BSP M |
|
Each Individual Hose Tested and Certified |
Yes |
|
AS4233.2: 2020 High-Pressure Water Jetting |
Compliant |
|
ISO 7751: 2016 Rubber & Plastic Hose |
Compliant |
To view the 2023/24 Mustang Nozzle Catalogue, click this link. Includes nozzles, nozzle boxes, hoses, hose reels, spare parts and accessories. Request your free copy from The Jetters HQ team today.
*Unless specified, our Armadillo Jetting Hose range is supplied with BSP M fitting at the front and back of your hose. If you prefer a different fitting combination, please choose from the options illustrated on our hose page.
